Product Details:
|
| Service: | Accept OEM,ODM | Flatness: | Less Than 0.76mm |
|---|---|---|---|
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Property: | ESD,Non-ESD |
| Rohs Compliant: | Yes | Chemical Resistance: | Yes |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Highlight: | Injection Processing Custom Jedec Trays,Precision Machining Custom Jedec Trays,Chemical Resistance Custom Jedec Trays |
||
• The outline dimensions of all JEDEC matrix trays are 12.7 x 5.35 inches (322.6 x 136mm). Low profile trays with thickness of 0.25-inch (6.35mm) accommodate 90% of all standard components, such as BGA, CSP, QFP, TQFP, QFN, TSOP and SOIC.
• A high profile 0.40-inch (10.16mm) version is available to hold thick (high) components such as PLCC, CERQUAD, PGA (Pin Grid Arrays), modules and assemblies.
• A lot of thought was put into the design of JEDEC trays. Trays are configured with flat cells in the center area to allow automated handling by vacuum pick up tools.
• A scalloped feature is sculpted into one side of the tray to allow the use of a pin to mechanically fix correct orientation during use.
• A 45-degree chamfer in one corner provides a visual indicator of Pin 1 orientation of the components mounted in the tray.
• JEDEC trays are stackable within the same device family and maker's model. Mixing multiple manufacturers' brands is not recommended, even within the same device family, due to small differences from brand to brand.
• While JEDEC trays may be stacked several feet high, in normal practice, stacking is limited to 5 to 7 trays.

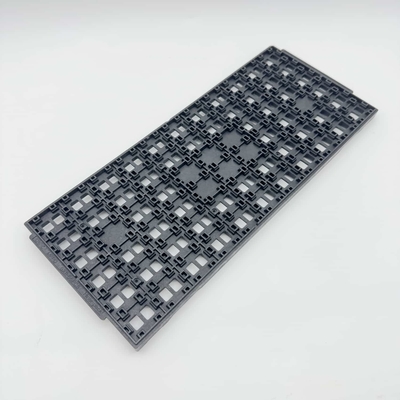

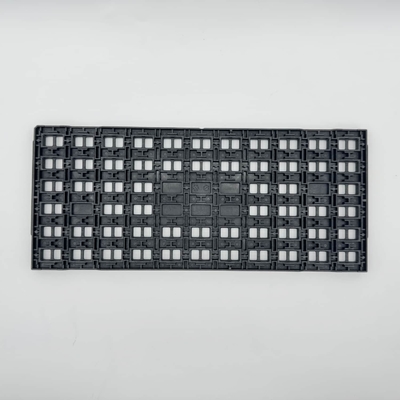

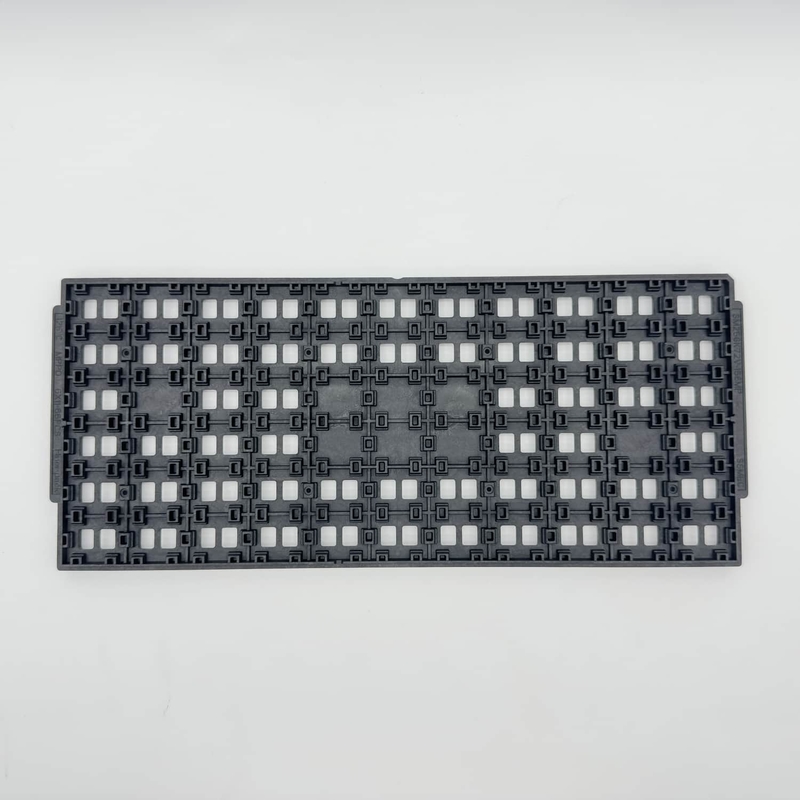

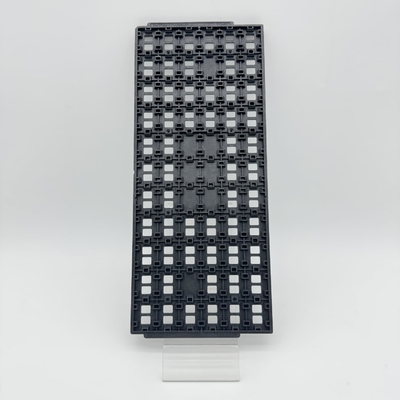

| Brand | Hiner-pack | Outline Line Size | 322.6*135.9*12.19mm |
| Model | HN24031 | Cavity Size | 14*22*1.96mm |
| Package Type | IC Component | Matrix QTY | 6*11=66PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
1. Ten years experience in the ESD tray Field;
2. Adequate Supply of products;
3. Professional non-standard custom;
4. MPPO.PPE.ABS.PEI.IDP...etc material;
5. Products follow the Jedec antistatic standard;
6. The tray is permanent unitary antistatic, cut off the headstream of the static threat of the products.
Q: How can I get a quotation?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
Q: How long will it take to get a response?
A:We will reply to you within 24 hours of working day.
Q: What kind of service we provide?
A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
Q: What is your terms of delivery?
A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
Q: How to guarantee quality?
A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
