Product Details:
|
| Color: | Black | Type: | BGA IC |
|---|---|---|---|
| Material: | PEI | Property: | ESD, Non-ESD |
| Custom Logo: | Available | Chemical Resistance: | Yes |
| Humidity Resistance: | Up To 90% RH | Shape: | Rectangular |
| Highlight: | 0.76mm Custom Jedec Matrix Trays,Semiconductor Packaging Custom Jedec Matrix Trays,Black Custom Jedec Matrix Trays |
||
• All JEDEC trays have identical “X” and “Y” dimensions, making them easy to stack for storage and manufacturing.
• Matrix Trays are primarily used in automated test & assembly processes, adhering to JEDEC standards. Integrated circuits and components are removed from these trays for testing or assembly onto printed circuit boards.
• Matrix Trays within the same device family and maker’s model are stackable. However, it is not recommended to mix trays from multiple manufacturers, even within the same device family, due to small differences between brands. An empty tray, without components, acts as the cover tray on top of the stack.

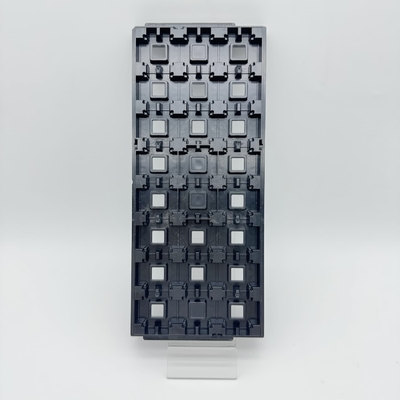

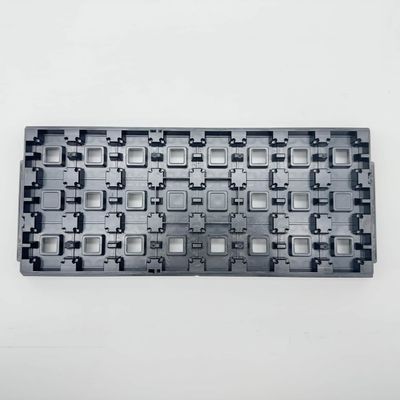

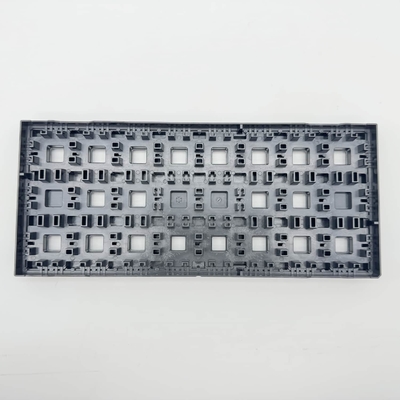

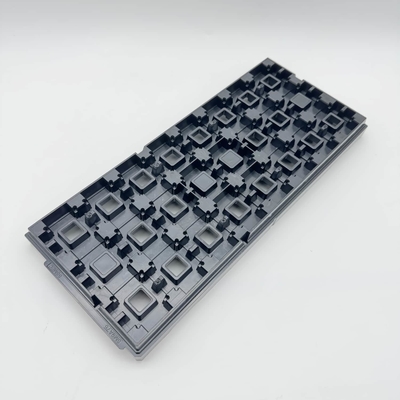

| Outline Line Size | 322.6*135.9*25.3mm | Brand | Hiner-pack |
| Model | HN24003 | Package Type | IC.Module |
| Cavity Size | 27.3*27.3*9.9mm | Matrix QTY | 3*8=24PCS |
| Material | PEI | Flatness | N/A |
| Color | Black | Temperature | 80~180°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Service | Accept OEM,ODM |
• Industry Standard
JEDEC matrix trays are recognized and understood. They give you instant access to equipment and accessories. JEDEC outlines have become the common language of automation.
• Precision Built In
JEDEC outlines have well established reference features and datums. The outline dimensions and tolerances take the risk out of equipment design, accelerating development time and lowering cost.
• Automation Ready
Asymmetric end tabs ensure proper orientation. Standard recesses and vacuum pickup points work well with many types of elevator and feed mechanisms. Interlocking features keep tray stacks stable.
Q: How can I get a quotation?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
Q: How long will it take to get a response?
A:We will reply to you within 24 hours of working day.
Q: What kind of service we provide?
A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
Q: What is your terms of delivery?
A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
Q: How to guarantee quality?
A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
