Product Details:
|
| Capacity: | 4*13=52PCS | Material: | PPE |
|---|---|---|---|
| Color: | Black | Warpage: | Less Than 0.76mm |
| Chemical Resistance: | Yes | Bake: | Up To 150°C Or More High |
| Service: | Accept OEM,ODM | Humidity Resistance: | Up To 90% RH |
| Property: | ESD,Non-ESD | Clean Class: | General And Ultrasonic Cleaning |
| Highlight: | PPE Material Custom Jedec Trays,ESD Safe Custom Jedec Trays,Black Custom Jedec Trays |
||
• Hiner-Pack ensures that all our Integrated Circuit (IC) trays are antistatic and suitable for use as either IC shipping or IC baking trays.
• All our shipping trays are designed in accordance with JEDEC thick and thin standard dimensions. High-temperature trays can be baked up to 150°C or more, while low-temperature trays can withstand a maximum sustained temperature of 65°C. The materials used in these trays are known for their high deflection temperature, superior strength, and dimensional stability. JEDEC trays feature consistent “X” and “Y” dimensions, enabling easy stacking for storage and manufacturing.

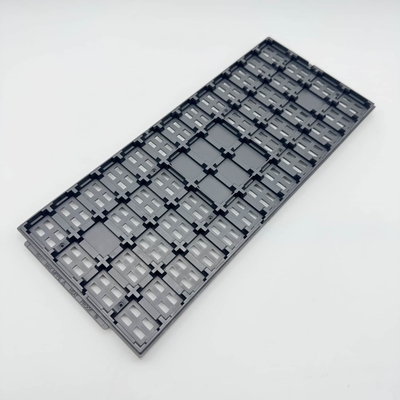

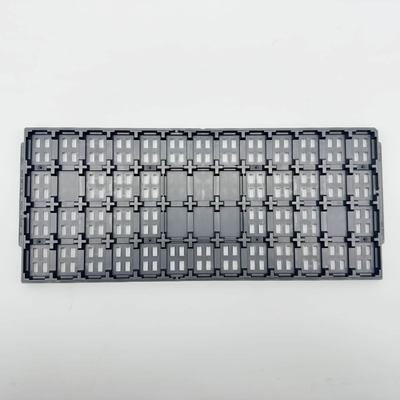

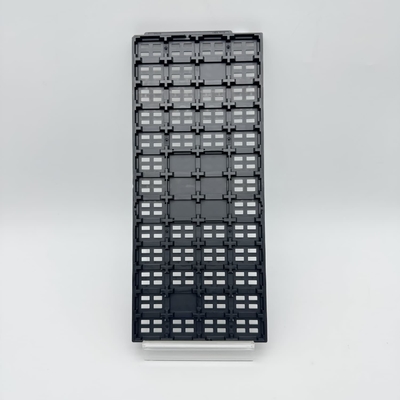

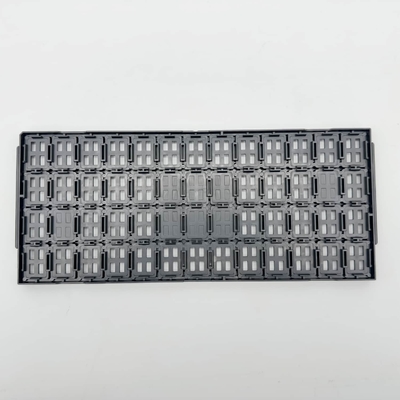

| Outline Line Size | 322.6*135.9*13.19mm | Brand | Hiner-pack |
| Model | HN 24001 | Package Type | IC Component |
| Cavity Size | 18*27*6.5 mm | Matrix QTY | 4*13=52PCS |
| Material | PPE | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
• Packaging: Fundamentally, trays are essentially containers. The JEDEC tray design incorporates elements for easy stacking, enabling each tray to act as a cover for the one below it.
• Transportation & Storage: Components housed in stacked JEDEC trays are convenient to store and transport, whether it's just across the room or to distant locations worldwide. Furthermore, JEDEC trays can serve as carriers for moving their contents through various processing tools and machinery.
• Protection: The primary function of JEDEC trays is to shield the components they contain from physical harm. Most JEDEC trays are crafted using materials that not only offer mechanical protection but also safeguard against electrostatic discharge (ESD) damage.
• Standardization: The JEDEC IC matrix trays are compatible with the majority of semiconductor and PC board manufacturing equipment, making them a widely accepted industry standard. Over the years, a broad range of support products for JEDEC trays has emerged globally, including corrugated boxes, protective covers, retaining straps, modular feeders, and a wealth of associated industry expertise.
Q: How can I get a quotation?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
Q: How long will it take to get a response?
A:We will reply to you within 24 hours of working day.
Q: What kind of service we provide?
A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
Q: What is your terms of delivery?
A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
Q: How to guarantee quality?
A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
