Product Details:
|
| Material: | MPPO | Color: | Black |
|---|---|---|---|
| Temperature: | 135°C | Property: | ESD |
| Surface Resistance: | 1.0x10E4~1.0x10E11Ω | Flatness: | Less Than 0.76mm |
| Clean Class: | General And Ultrasonic Cleaning | Incoterms: | EXW,FOB,CIF,DDU,DDP |
| Customized Service: | Support Standard And Non-standard,precision Machining | Injection Mold: | Customized Case Need(Lead Time 25~30Days,Mold Life Span: 300,000 Times.) |
| Highlight: | mppo custom jedec trays,electrostatic discharge custom jedec trays,mppo jedec standard matrix tray |
||

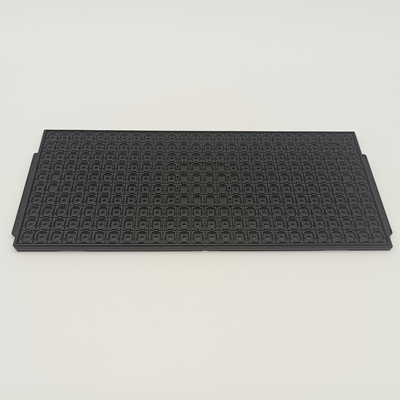

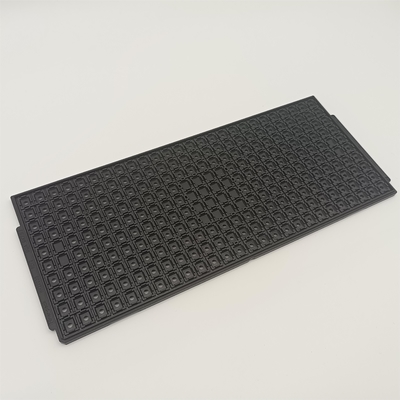

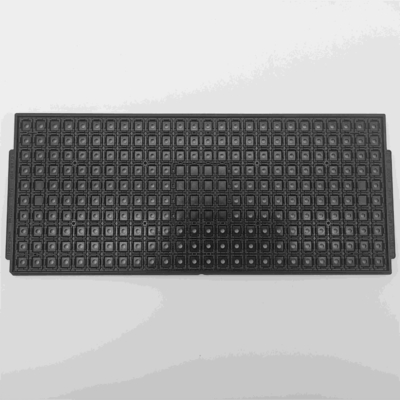

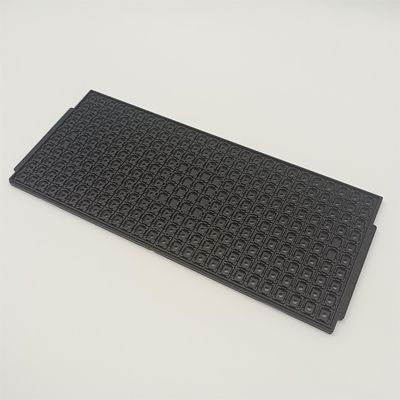

BGA 9*7.5 Black MPPO JEDEC Tray for Electronic Products
JEDEC tray is a standard matrix tray, most of which have very similar dimensions 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). It is used throughout the semiconductor and microelectronics industries for the transportation, processing and storage of complete chips (integrated circuits) and various other components.The tray also comes in many different accessories, it is designed to be stackable. It is usually perforated to allow air to pass from tray to tray.
The Details of the HN22035 JEDEC Tray
The HN22035 JEDEC tray is made of MPPO material with strong impact resistance and water resistance. Generally, the color of tray products is black, but because of the high transparency of this raw material, we can also change it into various colors according to the needs of customers. The trays are also produced in strict compliance with JEDEC international standards, and the pocket size of the tray corresponds to specifications of the customer's products, which can perfectly protect the customer's products.
In addition to the jedec tray, we can also provide matching tray cover and clip for customers. At the same time, our company is also equipped with regular cleaning workshop, professional cleaning production line and inspection departments. The professional equipment perfectly ensures the qualified rate of products. Our company has more than ten years of experience in the production of many kind of tray, and can provide customers with the most perfect packaging design scheme.
| Outline Line Size | 322.6*135.9*7.62mm | Brand | Hiner-pack |
| Model | HN22035 | Package Type | Devices |
| Cavity Size | 9.2*7.7*2.22mm | Matrix QTY | 26*10=260PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Temperature | 135°C |
| Resistance | 1.0x10e4-1.0x10e11Ω | Original | China |
The Application of the HN22035 Matrix Tray
Optical Industry Military Industry
Micro and Nano System Embedded System
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized | ||
Advantage
1. Have exported for more than 10 years
2. Have professional engineer and efficient management
3. Delivery time is short, normally in stock
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, Germany, UK, Europe, Korea, Japan...etc, Win many big famous customer reputation.
7. Factory have ISO certificate, Product comply to Rohs standard.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q3: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
Q4. How long is the delivery time?
For standard machine, it would be 5-7Working days. For non-standard/customized machines according to clients' specific requirements, It would be 20~25 working days.
Q5. Do you arrange shipment for the products?
It’s depends on our incoterms,If FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q6: When can we get the samples?
We can send you them right now if you are interested in something we have stock.
